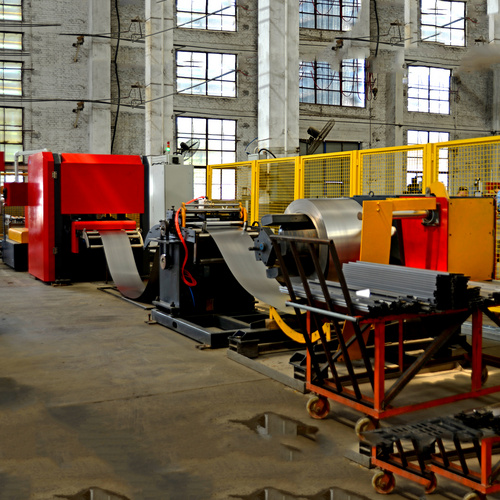

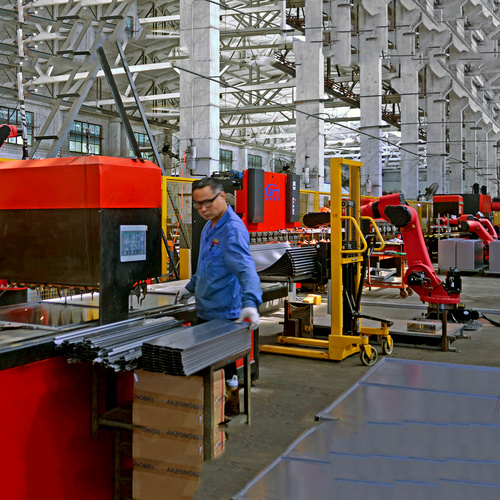

Intelligent 3 In 1 CNC Equipment

Intelligent 3 In 1 CNC equipment flatting cutting punching for the metal cabinet products

1. Equipment list

No.	Name	Specifications	Demimensions	Quantity	Remarks
1	Uncoiler	1250 3 In 1 intelligent uncoiler	50005100310	1
2	Leverller	Up 5 down 4 flatting rollers		1
3	Punching machine	can be fix 4 sets of mode racks, totally 40 mudes		1
4	Receiving table	CBNT offer		1
5	Powder distribution	CBNT offer		1
6	Operating system	CBNT offer		1
7	Powder	65KW		1

2. Main technical specifications

Main technical sprcificaitons	CBNT-UC1250mm Faltting-Cutting- punching 3 In 1 intelligent production line
Equipment working size requirements	About 1500050002000mm
technological process	Semi—— automatic materials loading—— aotu-incoiling——feeding/Flatting/ leveling—— cutting/ punching/——auto-stowing
Feeding length and mode	1000mm/Faltting rollers
Punching times	500cp/min
mudes change machine	2
Servo axis number	8+1+2
Powder of hit	Servo
Uncoiler	Feeding/ Faltting/ Leveling/ 3 In 1 Production line
Width range of the materials	300-1250mm
Feeding roller	2 sets
Corrective roller(Flatting and leveling )	up 5 pcs/ down 4 pcs
Discharge speed	16m/ min
Roll materials	≤10T
Roll materials inner diameter requirements	φ508mm
Roll materials external diameter requirements	φ1300mm
Uncoiler expansion	Hydraulic Operation
Materials thickness requirement	no thicker than 2mm
Punching powder	300KN
Maximum punching hole	90*180mm
Holes' number of mudes	B section fix 32pcs; D section fix 8pcs
Punching accuracy	±0.1mm
Diagonal accuracy	±0.5mm

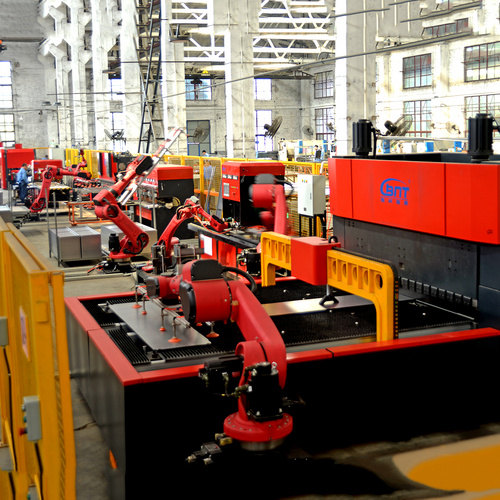

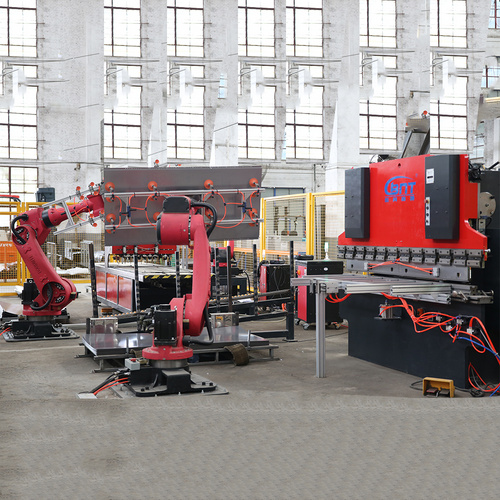

Luoyang CBNT Automation Equipment Co., Ltd. is a professional in the R&D, production and sales of high-tech enterprises CNC flexible bending intelligent production equipments. The company specializes in intelligent flexible flatting-cutting- punching 3 in 1 &zwnj;inteelligent production line, intelligent full servo bending euipments, intelligent multilateral bending center, flexible intelligent welding production line and intelligent shelf production line. In order to adapt to the future market demands better, the company strives for variation, innovation, using the international general sheet metal flexible production line manufacturing concept, and adopts the modular and industrialized international standard design, update the traditional manufacturing process, replace present technology components, deeply mix the new generation of information technology and manufacturing together, to more rapid, refined manufacturing. Provide more accurate technical services and solutions for the sheet metal processing.

2. Overall Layout Diagram:

SUPPLY ABILITY AND TRADING TERMS

Terms of payment

-T/T, 10% deposit before design the drawing draft, 60% before production, 20% before loading, 10% the balance after the adjustment and installation.

Lead-time

1.Design picture draft: 2 weeks

2.Production line: 3 months

3.Technical training: 1 week. The company can also provide in-door installation, equipment debugging, technical training services, to guide the plant establishment and production.
