Automatic Bending and Welding Production Line For Shelf Boards of Metal Cabinet

Shelf Automatic Production Line For Metal Cabinet

1. Specification

No.	Equipment name	Brand	Size	Amount	Function
1	Double ends of short edge bending machine	CBNT, ODM&OEM	185022201950mm	1	Double ends bending
2	Double ends of long edge bending machine		165023001650mm	1	Double ends bending

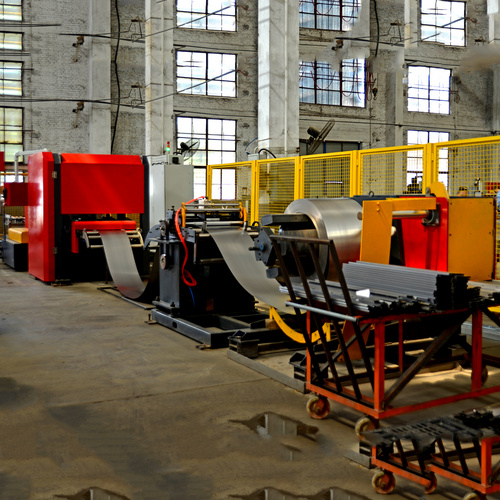

3	Uncoiler			1	Uncoil
4	Leveler/Flatting machine			1	Correction leveling/ Flatting
5	Welding line			1	spot welding, dot welding;
6	Truss robot			1	Unloading and Stacking
7	Truss robot			1	Reinforce-bar loading
8	Hand cart (reinforce-bar)			2	Put the reinforce-bar for using
9	Operating system			1
10	Power		80KW

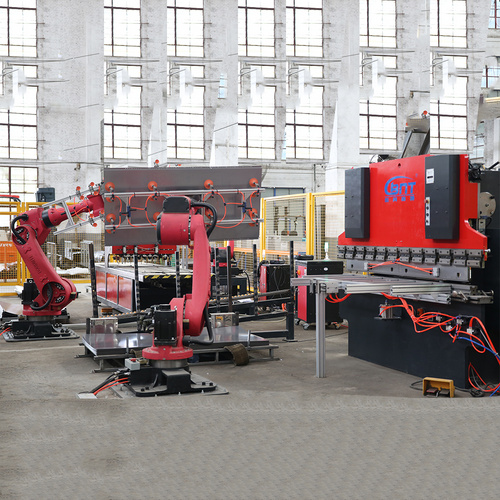

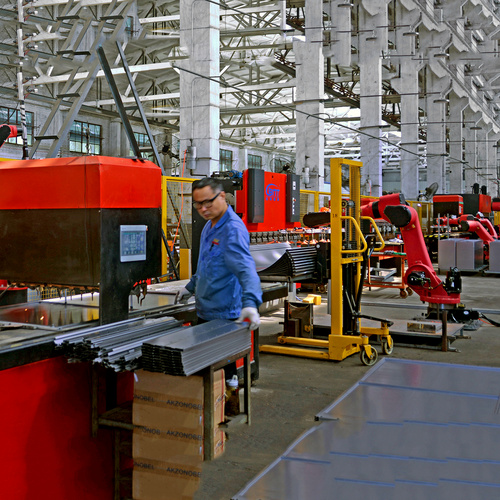

Selecting our shelf boards automatic bending and spot welding production line, the cutting plate can be bent at both ends of the short side of the plate through the double end bending center, then through the long sides of the bending center of the plate, which can bend multiple times at the same time. Through the conveyor rack to the welding line, and completes the reinforcement action through the truss robot arm.

2. Description of equipment:

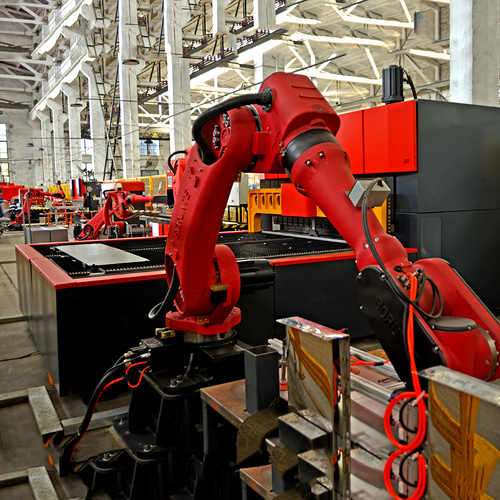

The last step, use the truss robot to put the reinforce-bar on the shelf to finish the welding production. Using the truss robot to unload and stacking to complete the shelf. Monthly output reaches 25,000pcs.

3. UN2200hbzhscx Shelf production line configuration

Specifications	Shelf Automatic production line
Size of equipment	L14 m * W4 m * H3.5 m

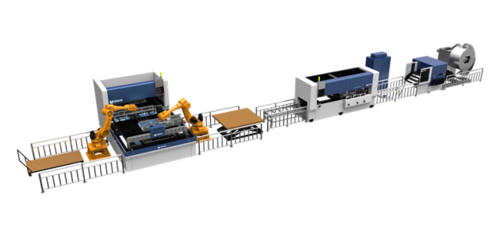

Technological process	Uncoiler→Leveling→Two ends bend→Two sides bend→Rowing welding machine→Truss robot finished and Storage
Worktable production line-height of equipment:	Apart from the ground 900 ± 50mm
Material Scope	Material is Q235, stainless steel roll, and other flexible sheet metal
Thickness:	0.5-1.2mm
Capacitance:	About 60KVA(380V,50HZ)
Barometric Pressure	0.5-0.6Mpa
Product Range	Comply with the product drawing requirements confirmed by both parties/ Required by Customer
Machining accuracy	Processing accuracy: the ultimate deviation accuracy of the tolerance dimension on the drawing is GB1804-m.
Metal sheet color	Red and black/ blue and white/Required by customer
Bending speed	0.5s
CNC system	SYNTEC
Operational software	UNZ10 (Free update)
Main accessories brand
Robot brand and model	Truss robot or Borunte robot
Original pneumatic unit and air cylinder	AIRTAC or SMC
Vacuum generator, suction cups	SMC
Ball-bearing and linear guideway	HIWIN
Axle bearing	NSK
Reduction gearbox	ZD(Zhongda)
Programmable control unit(PCU)	SYNTEC (Chinese operation)
Inverter	SYNTEC
Low voltage appliances, buttons, indicator lights, air switches	Schneider
Intermediate relay	Schneider
Sensor	Panasonnic
AC contactor	Schneider
Servo motor	SYNTEC
Wire and cable	Delrou

SUPPLY ABILITY AND TRADING TERMS

Terms of payment

-T/T, 10% deposit before design the drawing draft, 60% before production, 20% before loading, 10% the balance after the adjustment and installation.

Lead-time

1.Design picture draft: 2 weeks

2.Production line: 3 months

3.Technical training: 1 week. The company can also provide in-door installation, equipment debugging, technical training services, to guide the plant establishment and production.
