1. Specification

NO.	Name	Parameter	Remark
1	Height of Equipment	From the ground 850±50mm
2	Size of Equipment	Length * Wide: about 16,000*5000mm
3	Product size	L=1500-2000mm,W=350-600mm(finished)
4	Output Capacity	≤55s/Set	Average
5	Material Scope	Q345B
6	Thickness	0.5mm-0.8mm
7	Capacitance	About 80KVA(380V,50Hz)
8	Barometric Pressure	0.6~0.8MPa
9	Machine operating temperature	-5℃-40℃
10	Machining accuracy	The limit deviation accuracy of the dimensions without tolerance in the drawing is according to GB1804-m
11	control system	SYNTEC (Made in Taiwan)

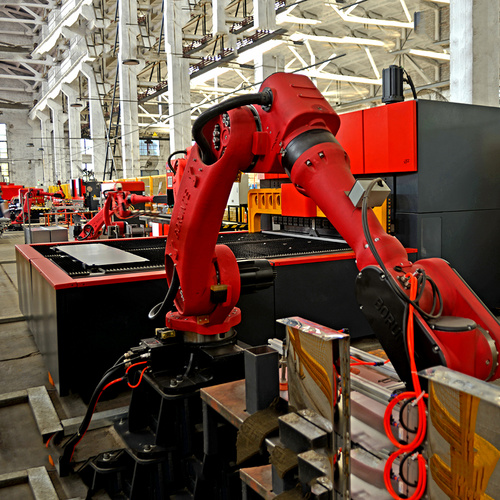

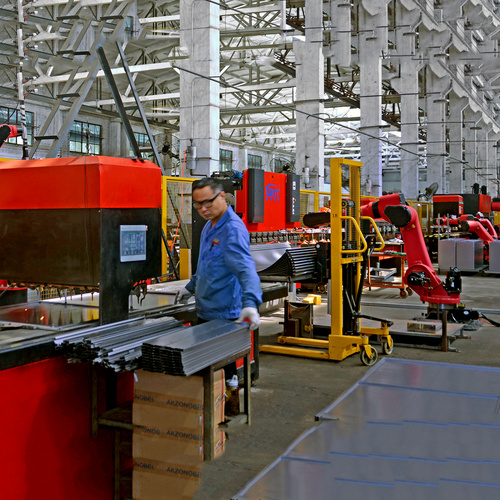

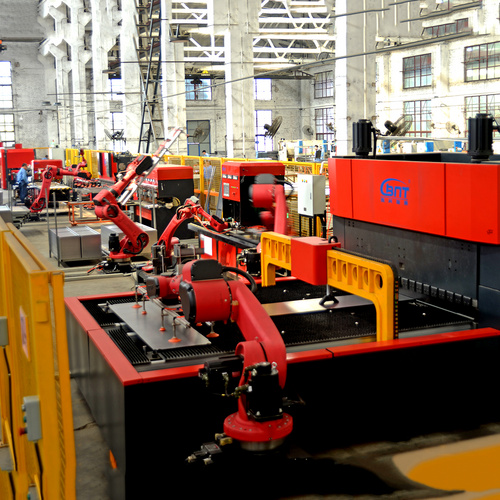

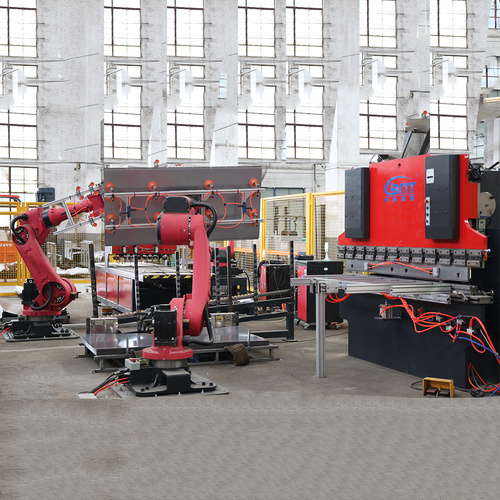

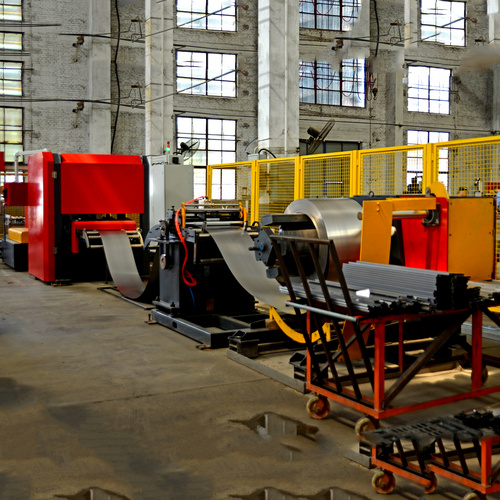

This scheme is the basis of the product drawings provided by Luoyang CBNT Automation Equipment Co., Ltd. to protocol the preliminary technical proposal and quotation.Our forming line is mainly composed of feeding spreading platform, moving splitting robot, bending center, transfer moving robot, welding line, reinforcing bar case , reinforcing bar loading robot, unloading robot, pneumatic system, hydraulic system, electric control system and so on.Application: high volume production of side of metal cabinet.

Process flow: feeding -- bending center of four sides forming -- transfer moving robot -- reinforcing bar loading -- welding line -- unloading

2. Overall Layout Diagram:

3.2200CBZHSCX bending welding production line configuration

No.	Name	parameters	remark
1	Splitting control center	Length and width:About 2000X800mm	CBNT
2	feeding robot	BRTIRUS 2550A 50KG	BRTIRUS
3	N22 Bending center	CBNT Bending center N22	CBNT
4	reinforcing bar case	case A case B	CBNT
5	transfer moving robot	BRTIRUS2550A 50KG	BRTIRUS
6	reinforcing bar loading robot	BRTIRUS1510A 10KG	BRTIRUS
7	welding line system upgrade version	Hamworthy	CBNT
8	Unloading truss robot		CBNT
9	Unloading robot	50KG2550A 50KG	BRTIRUS
10	Hydraulic lubrication system
11	Electronic control system	SYNTEC (Made in Taiwan)
12	pneumatic system	AirTAC

SUPPLY ABILITY AND TRADING TERMS

Terms of payment

-T/T, 10% deposit before design the drawing draft, 60% before production, 20% before loading, 10% the balance after the adjustment and installation.

Lead-time

1.Design picture draft: 2 weeks

2.Production line: 3 months

3.Technical training: 1 week. The company can also provide in-door installation, equipment debugging, technical training services, to guide the plant establishment and production.
